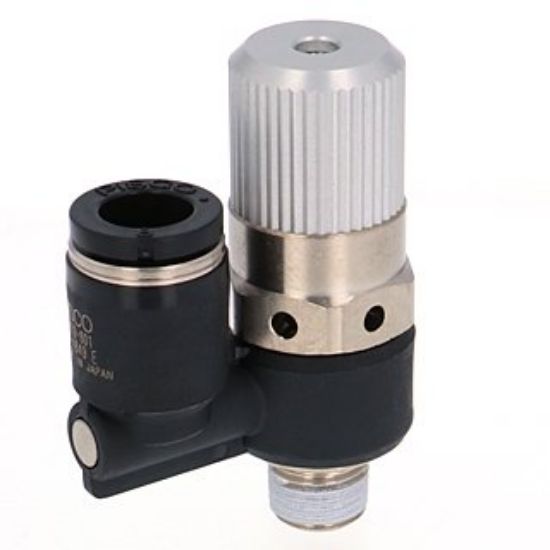

Pisco VSH10-801 Vacuum Generator VS

Pisco VSH10-801 Vacuum Generator VS

Size
vacuum port tube outer diameter (V): 8mm
air supply port screw size (P): R1/8

Vacuum characteristics
high vacuum degree nozzle
diameter: 1mm
Reach vacuum degree: -93kPa
Suction flow rate: 28 L / min (ANR)
Consumption flow rate: 46 L / min (ANR)

Features
● Compressed air is changed to vacuum and can be used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

40g
