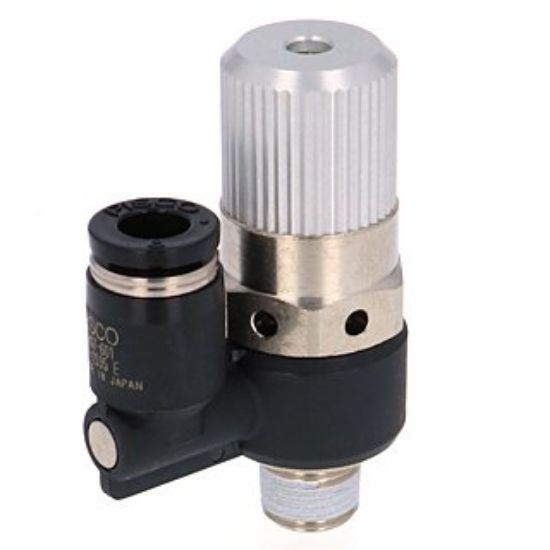

Pisco VSH07-601 Vacuum Generator VS

Pisco VSH07-601 Vacuum Generator VS
Manufacturer: Pisco
SKU: PS-VSH07-601
Manufacturer part number: VSH07-601

Pisco VSH07-601 Vacuum Generator VS

Size
Vacuum port tube outer diameter (V): 6mm
Air supply port screw size (P): R1/8

Vacuum characteristics
High vacuum degree
nozzle diameter: 0.7mm
To reach vacuum degree: -93kPa
Suction flow rate: 13L/min(ANR)
Consumption flow rate: 23L/min(ANR)

Features
●Compressed air can be changed into a vacuum and combined with a vacuum pad to convey workpieces (things).

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

38.5g
