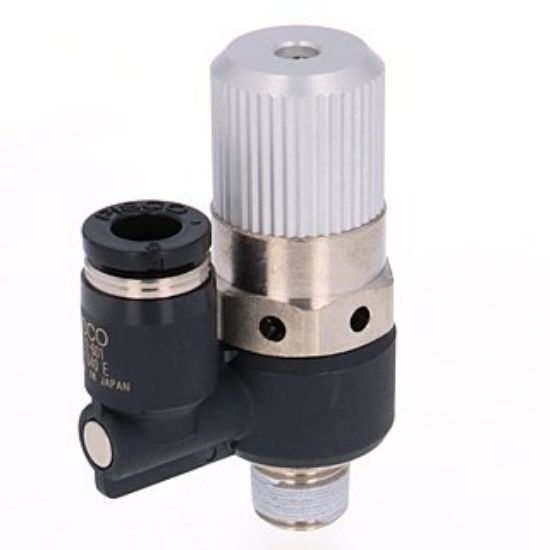

Pisco VSE12-601 Vacuum Generator VS

Pisco VSE12-601 Vacuum Generator VS
Manufacturer: Pisco
SKU: PS-VSE12-601
Manufacturer part number: VSE12-601

Pisco VSE12-601 Vacuum Generator VS

Size
Vacuum port tube outer diameter (V): 6mm
Air supply port screw size (P): R1/8

Vacuum characteristics
Low supply pressure high vacuum degree
Nozzle diameter: 1.2mm
To reach vacuum degree: -92kPa
Suction flow rate: 27 L / min (ANR)
Consumption flow rate: 47 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

38g
