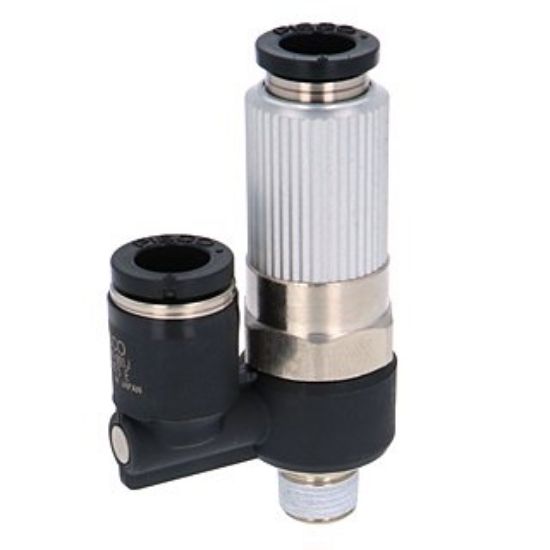

Pisco VSE10-801J Vacuum Generator VS

Pisco VSE10-801J Vacuum Generator VS
Manufacturer: Pisco
SKU: PS-VSE10-801J
Manufacturer part number: VSE10-801J

Pisco VSE10-801J Vacuum Generator VS

Size
vacuum port tube outer diameter (V): 8mm
air supply port screw size (P): R1/8
exhaust port tube outer diameter (EX): 8mm

Vacuum characteristics
Low supply pressure high vacuum type
Nozzle diameter: 1mm
Arrival vacuum degree: -92kPa
Suction flow rate: 21L/min (ANR)
Consumption flow rate: 34L/min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)


Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

47.5g
