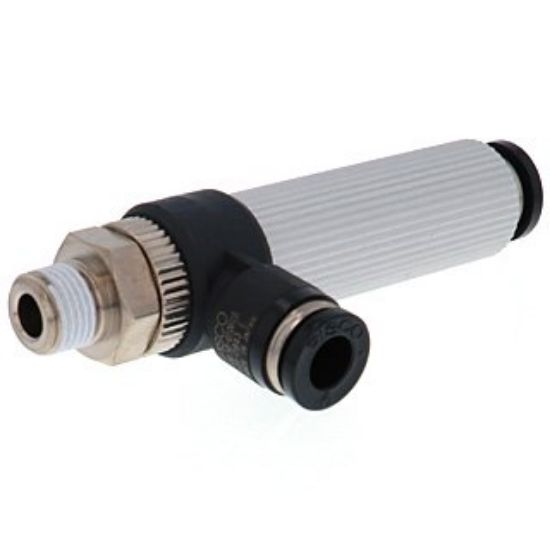

Pisco VRL50-010608 Vacuum Generator VRL

Pisco VRL50-010608 Vacuum Generator VRL
Manufacturer: Pisco
SKU: PS-VRL50-010608
Manufacturer part number: VRL50-010608

Pisco VRL50-010608 Vacuum Generator VRL

Size
Minimum flow path diameter: 2.8mm
vacuum port screw size (V): R1/8
air supply port tube outer diameter (P): 6mm
Exhaust port tube outer diameter (EX): 8mm

Performance
Reach vacuum degree: -53kPa
Suction flow rate: 50 L/min(ANR)
Consumption flow rate: 50 L/min (ANR)

Features
●Conveys small, irregular workpieces such as grains, powders, and fibers.
● Intake port and exhaust port are aligned. Since the workpiece is sucked in from the intake port, passed through the inside of the vacuum generator, and discharged from the exhaust port, workpieces can be conveyed through a tube.
● Model selection is possible based on the size of the conveyance work.

Specifications
● Fluid used: air, inert gas
● Operating pressure range: 0 to 0.9 MPa
● Rated supply pressure: 0.5 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

52g
