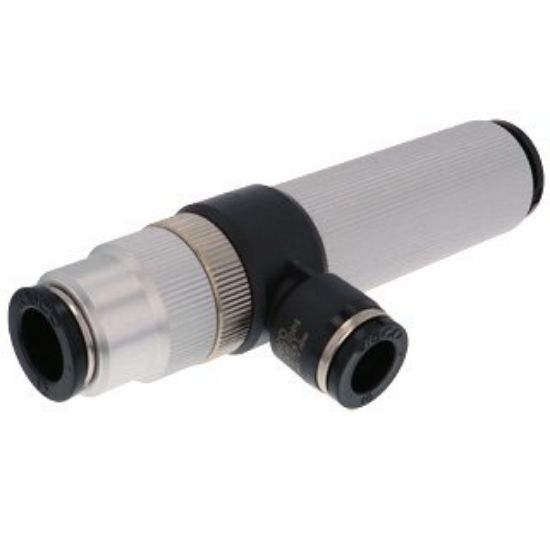

Pisco VRL300-121016 Vacuum Generator VRL

Pisco VRL300-121016 Vacuum Generator VRL
Manufacturer: Pisco
SKU: PS-VRL300-121016
Manufacturer part number: VRL300-121016
$109.09 Call to Order

Pisco VRL300-121016 Vacuum Generator VRL

Size
Minimum flow path diameter: 7.5mm
Vacuum port tube outer diameter (V): 12mm
Air supply port tube outer diameter (P): 10mm
Exhaust port tube outer diameter (EX): 16mm

Performance
Reach vacuum degree: -53kPa
Suction flow rate: 300L/min(ANR)
Consumption flow rate: 300L/min(ANR)

Features
●Conveys small, irregular workpieces such as particles, powders, and fibers.
● Intake port and exhaust port are aligned. Since the workpiece is sucked in from the intake port, passed through the inside of the vacuum generator, and discharged from the exhaust port, workpieces can be conveyed through a tube.
● Model selection is possible based on the size of the conveyance work.

Specifications
● Fluid used: air, inert gas
● Operating pressure range: 0 to 0.9 MPa
● Rated supply pressure: 0.5 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

176g
