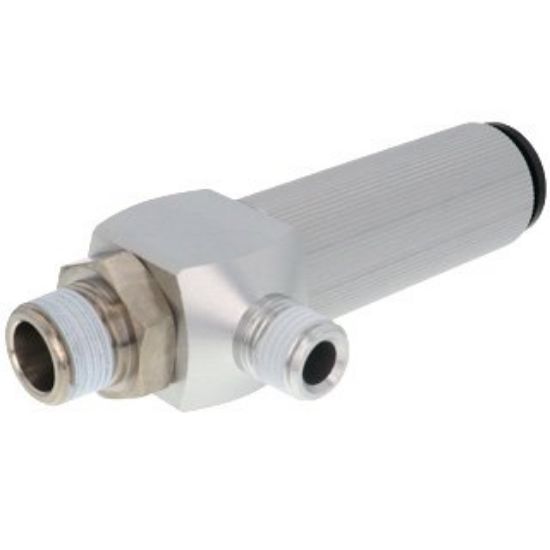

Pisco VRL300-030216 Vacuum Generator VRL

Pisco VRL300-030216 Vacuum Generator VRL
Manufacturer: Pisco
SKU: PS-VRL300-030216
Manufacturer part number: VRL300-030216
$117.27 Call to Order

Pisco VRL300-030216 Vacuum Generator VRL

Size
Flow path minimum diameter: 7.5mm
vacuum port screw size (V): R3/8
air supply port screw size (P): R1/4
exhaust port tube outer diameter (EX): 16mm

Performance
Reached vacuum level: -53 kPa
Suction flow rate: 300 L / min (ANR)
Consumption flow rate: 300 L / min (ANR)

Features
● Convey small, irregular workpieces such as granules, powders, fibers, etc.
● Intake port and exhaust port are aligned. Since the workpiece is sucked in from the intake port, passed through the inside of the vacuum generator, and discharged from the exhaust port, workpieces can be conveyed through a tube.
● Model selection is possible based on the size of the conveyance work.

Specifications
● Fluid used: air, inert gas
● Operating pressure range: 0 to 0.9 MPa
● Rated supply pressure: 0.5 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating, aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

174g
