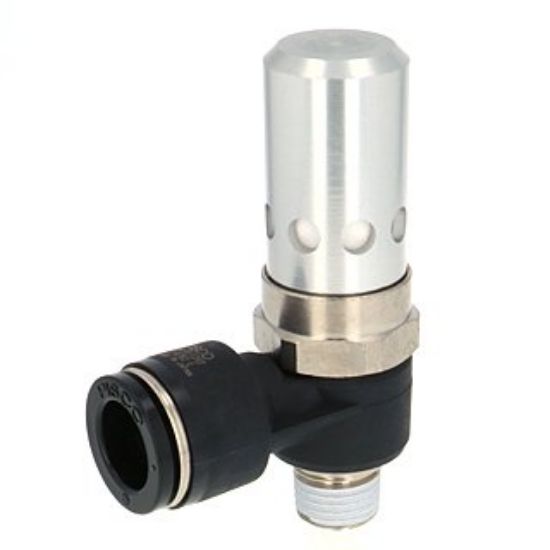

Pisco VHL15-1202 Vacuum Generator VH

Pisco VHL15-1202 Vacuum Generator VH

Size
vacuum port tube outer diameter (V): 12mm
air supply port screw size (P): R1/4

Vacuum characteristics
large flow type
nozzle diameter: 1.5mm
Reach vacuum degree: -66kPa
Suction flow rate: 95 L / min (ANR)
Consumption flow rate: 100 L / min (ANR)

Features
● Compressed air is changed to vacuum, and it can be used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass
81.5g
