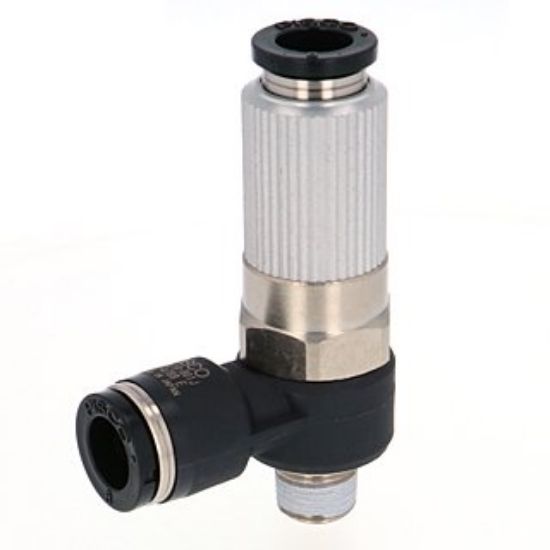

Pisco VHL10-801J Vacuum Generator VH

Pisco VHL10-801J Vacuum Generator VH
Manufacturer: Pisco
SKU: PS-VHL10-801J
Manufacturer part number: VHL10-801J

Pisco VHL10-801J Vacuum Generator VH

Size
Vacuum port tube outer diameter (V): 8mm
air supply port screw size (P): R1/8
exhaust port tube outer diameter (EX): 8mm

Vacuum characteristics
large flow type
Nozzle diameter: 1mm
Arrival vacuum degree: -66kPa
Suction flow rate: 42L / min (ANR)
Consumption flow rate: 46L / min (ANR)

Features
● Change compressed air to vacuum, Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

45g
