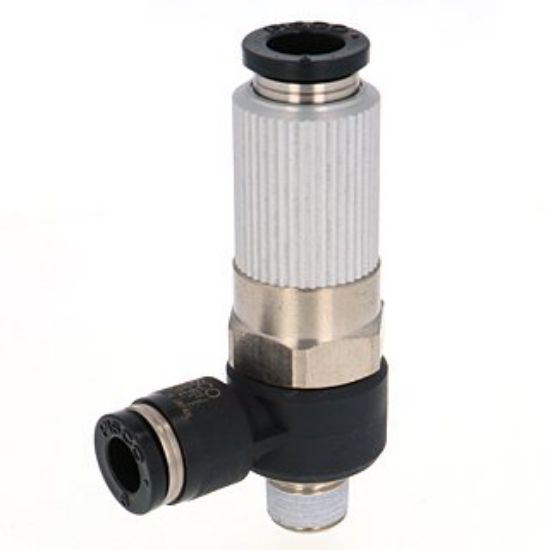

Pisco VHL10-601J Vacuum Generator VH

Pisco VHL10-601J Vacuum Generator VH
Manufacturer: Pisco
SKU: PS-VHL10-601J
Manufacturer part number: VHL10-601J

Pisco VHL10-601J Vacuum Generator VH

Size
Vacuum Port Tube Outer Diameter (V): 6mm
Air Supply Port Screw Size (P): R1/8
Exhaust Port Tube Outer Diameter (EX): 8mm

Vacuum Characteristics
Large Flow Type
Nozzle Diameter: 1mm
Reach vacuum degree: -66kPa
Suction flow rate: 42L / min (ANR)
Consumption flow rate: 46 L / min (ANR)

Features
● Compressed air is changed to vacuum and can be used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

44g
