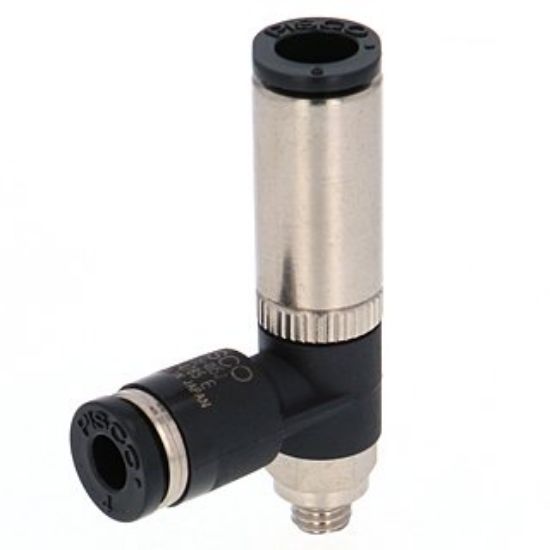

Pisco VHL05-4M5J Vacuum Generator VH

Pisco VHL05-4M5J Vacuum Generator VH
Manufacturer: Pisco
SKU: PS-VHL05-4M5J
Manufacturer part number: VHL05-4M5J

Pisco VHL05-4M5J Vacuum Generator VH

Size
vacuum port tube outer diameter (V): 4mm
air supply port screw size (P): M5×0.8
exhaust port tube outer diameter (EX): 6mm

Vacuum characteristics
Large flow type
Nozzle diameter: 0.5 mm
Arrival vacuum degree: -66kPa
Suction flow rate: 12L / min (ANR)
Consumption flow rate: 11.5L / min (ANR)

Features
● Change compressed air into vacuum Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

18g
