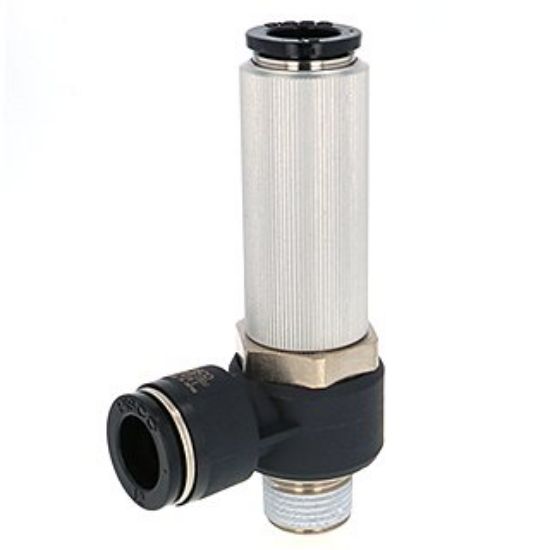

Pisco VHH20-1203J Vacuum Generator VH

Pisco VHH20-1203J Vacuum Generator VH

Size
vacuum port tube outer diameter (V): 12mm
air supply port screw size (P): R3/8
exhaust port tube outer diameter (EX): 12mm

Vacuum characteristics
High vacuum nozzle
diameter: 2mm
Arrival vacuum degree: -93kPa
Suction flow rate: 104L / min (ANR)
Consumption flow rate: 200L / min (ANR)

Features
● Change compressed air to vacuum, Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

138g
