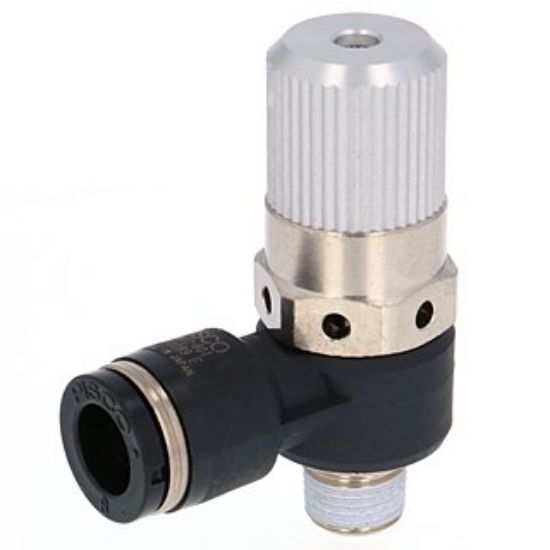

Pisco VHH12-801 Vacuum Generator VH

Pisco VHH12-801 Vacuum Generator VH
Manufacturer: Pisco
SKU: PS-VHH12-801
Manufacturer part number: VHH12-801

Pisco VHH12-801 Vacuum Generator VH

Size
Vacuum Port Tube Outer Diameter (V): 8mm
Air Supply Port Screw Size (P): R1/8

Vacuum Characteristics
High Vacuum Degree
Nozzle Diameter: 1.2mm
To Reach Vacuum Degree: -93kPa
Suction flow rate: 38 L / min (ANR)
Consumption flow rate: 70 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

37.5g
