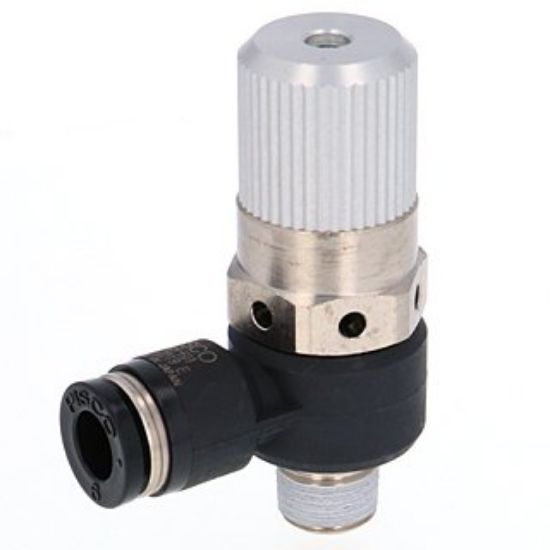

Pisco VHH05-601 Vacuum Generator VH

Pisco VHH05-601 Vacuum Generator VH

Size
Vacuum port tube outer diameter (V): 6mm
Air supply port screw size (P): R1/8

Vacuum characteristics
High vacuum degree
nozzle diameter: 0.5 mm
Reach vacuum degree: -90kPa
Suction flow rate: 7L / min(ANR)
Consumption flow rate: 11.5 L/min(ANR)

Features
●Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing it into a vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

36.5g
