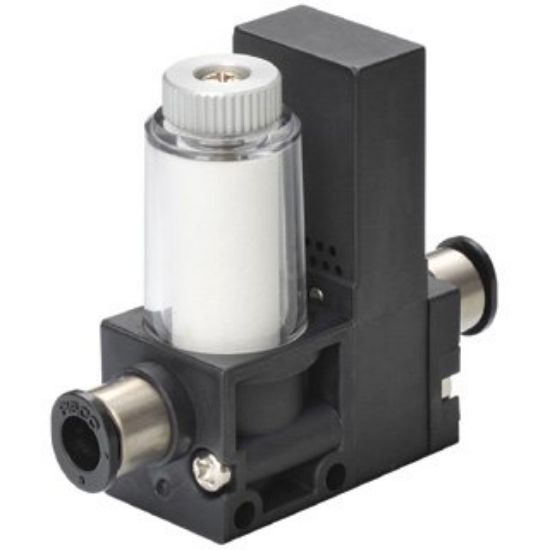

Pisco VGL10A-66 Vacuum Generator VG

Pisco VGL10A-66 Vacuum Generator VG

Size
Vacuum port tube outer diameter (V): 6
Air supply port tube outer diameter (P): 6 mm

Vacuum characteristics
Large flow type
Rated supply pressure: 0.5MPa
Nozzle diameter: 1mm
Reach vacuum level: -66kPa
Suction flow rate: 40 L / min (ANR)
Consumption flow rate: 46L / min (ANR)

Features
● Pressure sensor, vacuum failure valve, etc. are unitized. Types can be selected according to the purpose of use.

Specifications
● Fluid used: Air (JIS B8392-1: According to "Grade 1.2.1 to 2.4.3")
● Operating pressure range: 0.25 to 0.7 MPa
●Operating temperature range: 5 to 50 °C (without freezing)
● Operating humidity range: 35 to 85% RH (non-condensing)
● Vibration resistance / Shock resistance: 50m / s ^ 2 or less / 150m / s ^ 2 or less
● Protective structure: IP40 equivalent
● Refueling: unnecessary
- Pressure resistance: 1.05 MPa (air supply circuit), 0.2 MPa (vacuum circuit) (pressure resistance simply represents [pressure that the product does not break], unlike the pressure that the product can use normally)

Mass

47g
