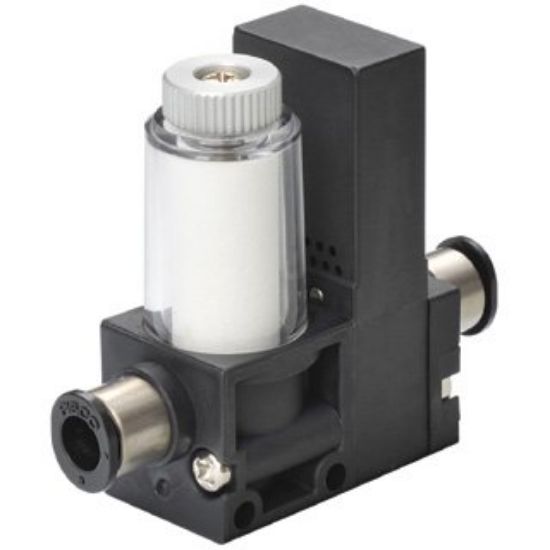

Pisco VGH05A-44 Vacuum Generator VG

Pisco VGH05A-44 Vacuum Generator VG

Size
Vacuum Port Tube Outer Diameter (V): 4
Air Supply Port Tube Outer Diameter (P): 4mm

Vacuum Characteristics
High Vacuum Degree
Rated Supply Pressure: 0.5MPa
Nozzle Diameter: 0.5mm
Reach vacuum degree: -90kPa
Suction flow rate: 7L / min (ANR)
Consumption flow rate: 11.5L / min (ANR)

Features
● Pressure sensor, vacuum failure valve, etc. are unitized. Types can be selected according to the purpose of use.

Specifications
● Fluid used: Air (JIS B8392-1: According to "Grade 1.2.1 to 2.4.3")
● Operating pressure range: 0.25 to 0.7 MPa
●Operating temperature range: 5 to 50 °C (without freezing)
● Operating humidity range: 35 to 85% RH (non-condensing)
● Vibration resistance / Shock resistance: 50m / s ^ 2 or less / 150m / s ^ 2 or less
● Protective structure: IP40 equivalent
● Refueling: unnecessary
- Pressure resistance: 1.05 MPa (air supply circuit), 0.2 MPa (vacuum circuit) (pressure resistance simply represents [pressure that the product does not break], unlike the pressure that the product can use normally)

Mass

47g
