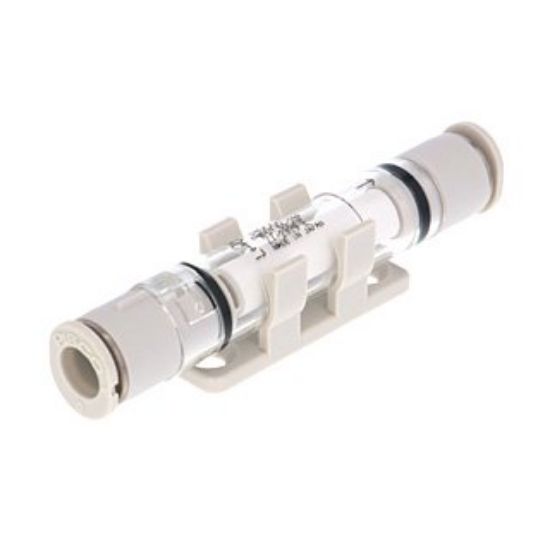

Pisco VFU1-66-25P Vacuum Filter

Pisco VFU1-66-25P Vacuum Filter
Manufacturer: Pisco
SKU: PS-VFU1-66-25P
Manufacturer part number: VFU1-66-25P

Pisco VFU1-66-25P Vacuum Filter

Size
Tube outer diameter (φD): 6mm

Filtration area
4.7cm²

Features
●Dust and water droplets sucked in by vacuum generator are removed.
● Vacuum filter that is very effective in areas where volume is minimal and high cycle of vacuum systems is required. The connection shape on the IN side and the OUT side can be selected from one-touch fittings and female thread types.

Specifications
● Fluid used: Air
● Operating pressure range: -100 to 0 kPa
● Filtration excess: 5 μm (collection efficiency: 95%) (depending on our measurement conditions)
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR
● Filter cover: PA
● Filter element: PVF

Mass

6.4g
