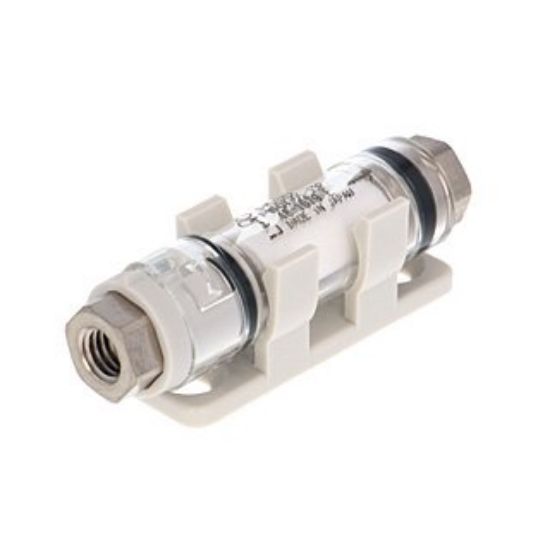

Pisco VFU1-55-15P Vacuum Filter

Pisco VFU1-55-15P Vacuum Filter
Manufacturer: Pisco
SKU: PS-VFU1-55-15P
Manufacturer part number: VFU1-55-15P

Pisco VFU1-55-15P Vacuum Filter

Size
Female thread size (M): M5×0.8

Filtration area
2.8cm²

Features
● Remove dust and water droplets sucked in by vacuum generators.
● Vacuum filter that is very effective in areas where volume is minimal and high cycle of vacuum systems is required. The connection shape on the IN side and the OUT side can be selected from one-touch fittings and female thread types.

Specifications
● Fluid used: Air
● Operating pressure range: -100 to 0 kPa
● Filtration excess: 5 μm (collection efficiency: 95%) (depending on our measurement conditions)
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal part: Brass + electroless nickel plating
● Seal rubber: NBR
● Filter cover: PA
● Filter element: PVF

Mass

7.6g
