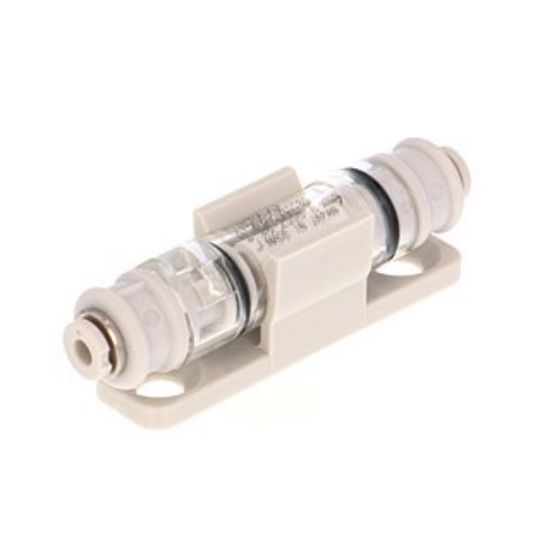

Pisco VFU0-180180 Vacuum Filter

Pisco VFU0-180180 Vacuum Filter
Manufacturer: Pisco
SKU: PS-VFU0-180180
Manufacturer part number: VFU0-180180

Pisco VFU0-180180 Vacuum Filter

Size
Tube outer diameter (φD): 1.8 mm

Filtration area
1.4 cm²

Features
● Remove dust and water droplets sucked in by vacuum generator.
● Vacuum filter that is very effective in areas where volume is minimal and high cycle of vacuum systems is required. The connection shape on the IN side and the OUT side can be selected from one-touch fittings and female thread types.

Specifications

● Fluid used: Air
● Operating pressure range: -100 to 0 kPa
● Filtration excess: 5 μm (collection efficiency: 95%) (depending on our measurement conditions)
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR
● Filter cover: PA
● Filter element: PVF

Mass

3g
