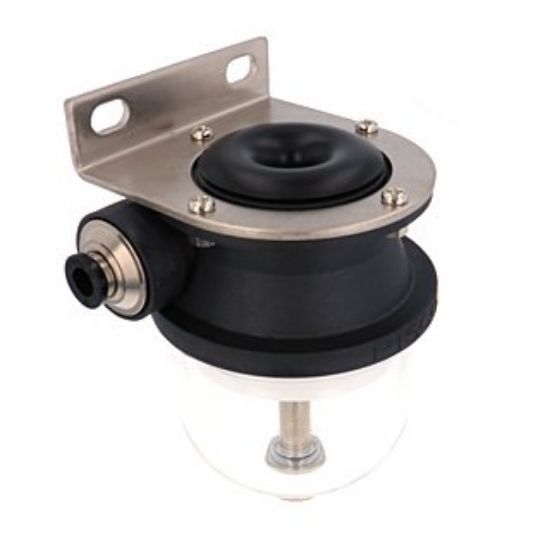

Pisco VFR20-6 Vacuum Filter

Pisco VFR20-6 Vacuum Filter

Size
Tube outer diameter (φD): 6mm

Filtration area
20cm²

Features
●Dust and water droplets sucked in by vacuum generator are removed by cyclone effect and elements. Large dust case reduces maintenance. It is also available for exhaust circuits used by attaching to the exhaust side of the vacuum generator.

Specifications
● Fluid used: Air
● Operating pressure range: -100 to 0 kPa
● Filtration excess: 5 μm (collection efficiency: 95%) (depending on our measurement conditions)
● Operating temperature range: 0 to 60 °C (without freezing)

Material
●Resin body: PBT
●Metal part: brass + electroless nickel plating, SPCC + electroless nickel plating
●Seal rubber: NBR
●Filter cover: PCTG
- Filter element: PVF

Mass

206g
