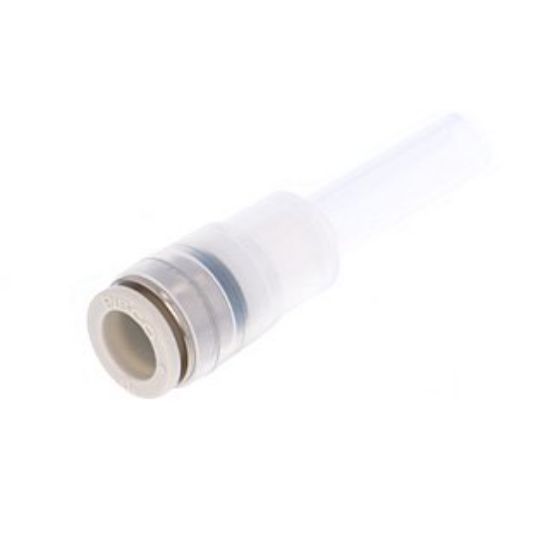

Pisco VFJ66 Vacuum Filter

Pisco VFJ66 Vacuum Filter

Size
Workpiece side tube outer diameter (φD): 6 mm
Vacuum generator side applied fitting diameter (φD): 6 mm

Filtration area
1.1 cm²

Features
● Remove dust and water droplets sucked in by the vacuum generator.
- Ideal for single type ejectors that do not have a built-in filter. The main body and nipple are integrated. Pp (polypropylene) is used as a resin material to achieve a low price.

Specifications
● Fluid used: Air
● Operating pressure range: -100 to 0 kPa
● Filtration excess: 5 μm (collection efficiency: 95%) (depending on our measurement conditions)
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PP
● Open ring: POM
● Seal rubber: NBR
● Filter element: PVF

Mass

2.5g
