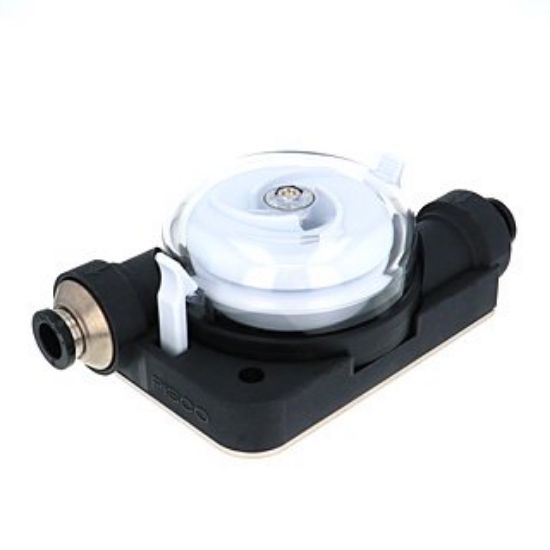

Pisco VFB20-8-8 Vacuum Filter

Pisco VFB20-8-8 Vacuum Filter

Size
Tube outer diameter (φD): 8 mm

Filtration area
20 cm²

Features
● Dust and water droplets sucked in by vacuum generator are removed by cyclone effect and elements.
● Since the entire dust case comes off with one touch, dust scattering is prevented. For vacuum circuits used by mounting between the vacuum pad and the vacuum generator.

Specifications
● Fluid used: Air
● Operating pressure range: -100 to 0 kPa
● Filtration excess: 5 μm (collection efficiency: 95%) (depending on our measurement conditions)
● Operating temperature range: 0 to 60 °C (without freezing)

Material
●Resin body: PBT
●Metal part: brass + electroless nickel plating, SPCC + electroless nickel plating
● Seal rubber: NBR
● Filter cover: PC
- Filter element: PVF

Mass

207g
