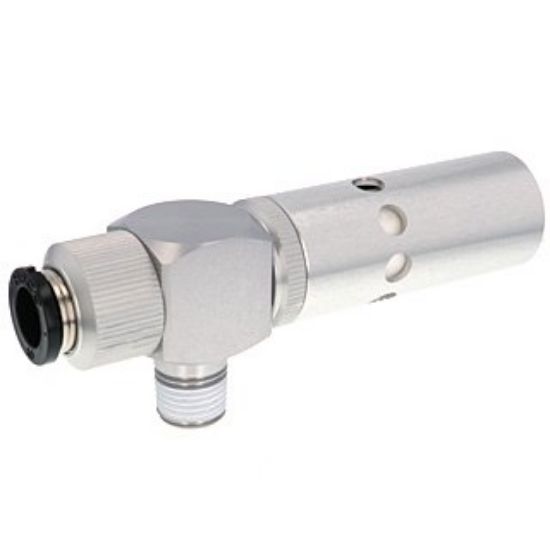

Pisco VCL20-0210C Vacuum Generator VC

Pisco VCL20-0210C Vacuum Generator VC

Size
Vacuum port screw size (V): R1/4
Air supply port tube outer diameter (P): 10 mm

Vacuum characteristics
Large flow type
Nozzle diameter: 2 mm
Reaching vacuum degree: -66kPa
Suction flow rate: 180L / min(ANR)
Consumption flow rate: 200L/min(ANR)

Features
●Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing it into a vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

88g
