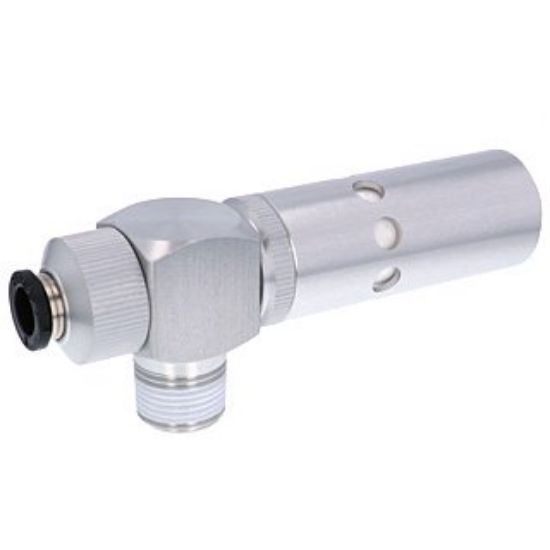

Pisco VCL15-038C Vacuum Generator VC

Pisco VCL15-038C Vacuum Generator VC

Size
vacuum port screw size (V): R3/8
air supply port tube outer diameter (P): 8mm

Vacuum characteristics
large flow type
nozzle diameter: 1.5 mm
Reach vacuum degree: -66kPa
Suction flow rate: 95 L / min (ANR)
Consumption flow rate: 100 L / min (ANR)

Features
● Compressed air is changed to vacuum, and it can be used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

86g
