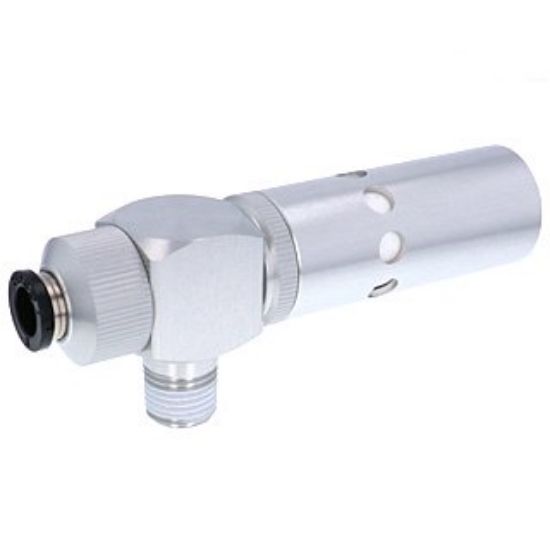

Pisco VCL15-028C Vacuum Generator VC

Pisco VCL15-028C Vacuum Generator VC

Size
Vacuum port screw size (V): R1/4
Air supply port tube outer diameter (P): 8mm

Vacuum characteristics
Large flow type
Nozzle diameter: 1.5mm
To reach vacuum degree: -66kPa
Suction flow rate: 95L / min(ANR)
Consumption flow rate: 100 L/min(ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

85g
