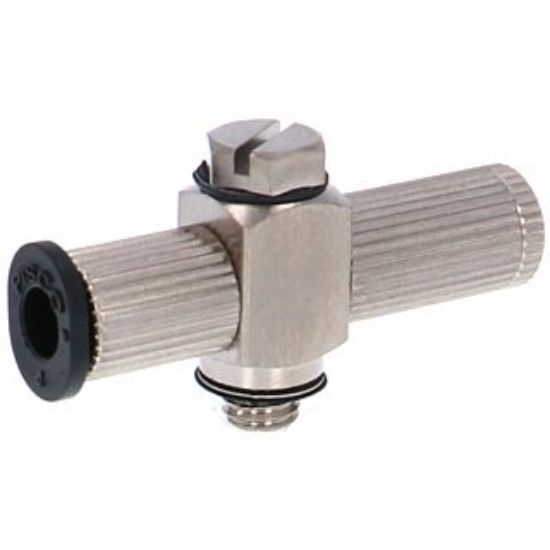

Pisco VCL05-M54 Vacuum Generator VC

Pisco VCL05-M54 Vacuum Generator VC

Size
Vacuum port screw size (V): M5×0.8
Air supply port tube outer diameter (P): 4mm

Vacuum characteristics
Large flow type
Nozzle diameter: 0.5 mm
Reach vacuum degree: -66kPa
Suction flow rate: 11L/min(ANR)
Consumption flow rate: 11.5L/min(ANR)

Features
●Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

17g
