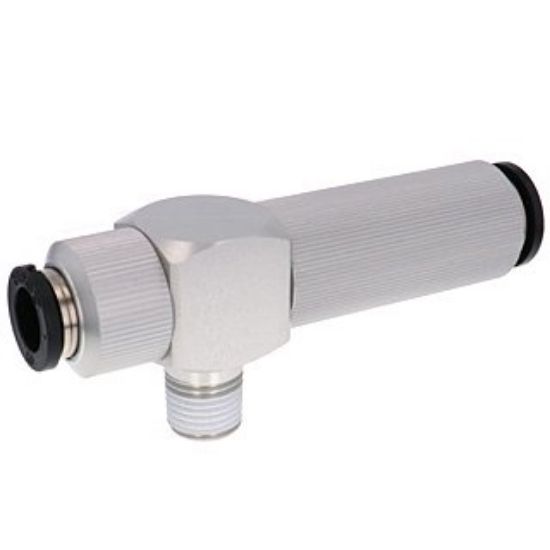

Pisco VCH20-0210CJ Vacuum Generator VC

Pisco VCH20-0210CJ Vacuum Generator VC

Size
Vacuum port screw size (V): R1/4
Air supply port tube outer diameter (P): 10 mm
Exhaust port tube outer diameter (EX): 12mm

Vacuum characteristics
High vacuum degree
nozzle diameter: 2mm
Reach vacuum degree: -93kPa
Suction flow rate: 110 L / min (ANR)
Consumption flow rate: 200 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
- Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

104g
