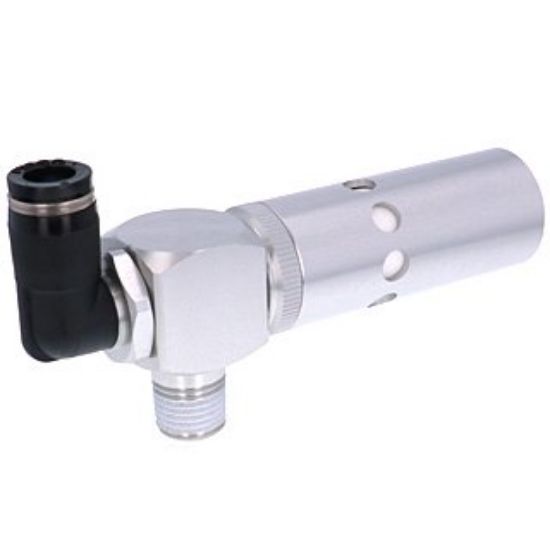

Pisco VCH15-028L Vacuum Generator VC

Pisco VCH15-028L Vacuum Generator VC

Size
vacuum port screw size (V): R1/4
air supply port tube outer diameter (P): 8mm

Vacuum characteristics
high vacuum degree nozzle
diameter: 1.5mm
Reach vacuum degree: -93kPa
Suction flow rate: 63L / min (ANR)
Consumption flow rate: 100 L / min (ANR)

Features
● Compressed air can be changed to vacuum and used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
●Resin body: PBT
●Open ring: POM
●Sealing rubber: NBR

Mass

85.5g
