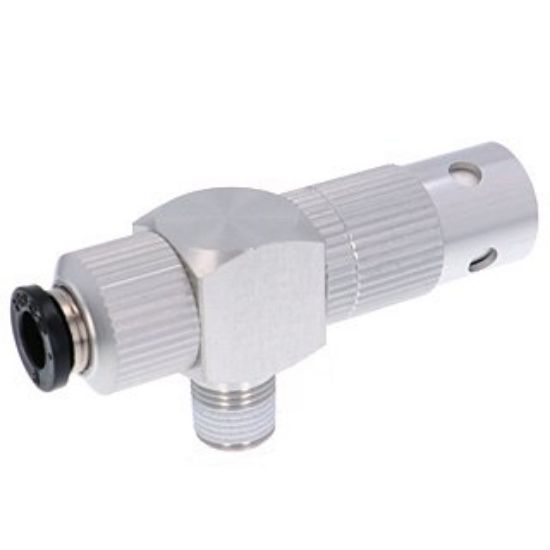

Pisco VCH12-016C Vacuum Generator VC

Pisco VCH12-016C Vacuum Generator VC

Size
Vacuum port screw size (V): R1/8
Air supply port tube outer diameter (P): 6mm

Vacuum characteristics
High vacuum degree
nozzle diameter: 1.2mm
To reach vacuum degree: -93kPa
Suction flow rate: 38 L / min (ANR)
Consumption flow rate: 70 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

31.5g
