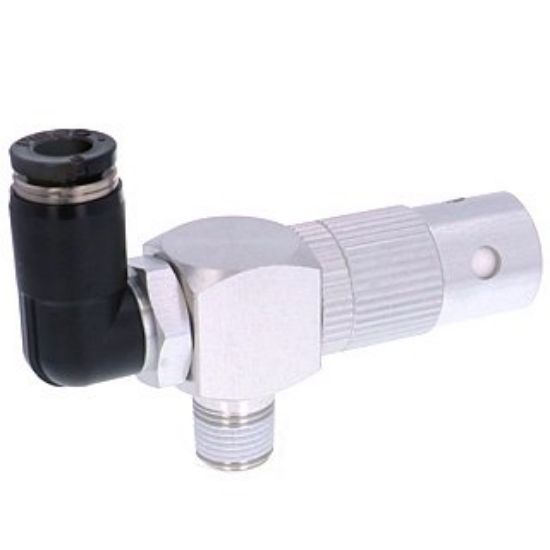

Pisco VCH07-016L Vacuum Generator VC

Pisco VCH07-016L Vacuum Generator VC

Size
vacuum port screw size (V): R1/8
air supply port tube outer diameter (P): 6mm

Vacuum characteristics
high vacuum degree nozzle
diameter: 0.7 mm
Reach vacuum degree: -93kPa
Suction flow rate: 13L / min (ANR)
Consumption flow rate: 23L / min (ANR)

Features
● Compressed air is changed to vacuum, and it can be used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Resin body: PBT
●Open ring: POM
●Seal rubber: NBR

Mass

31.5g
