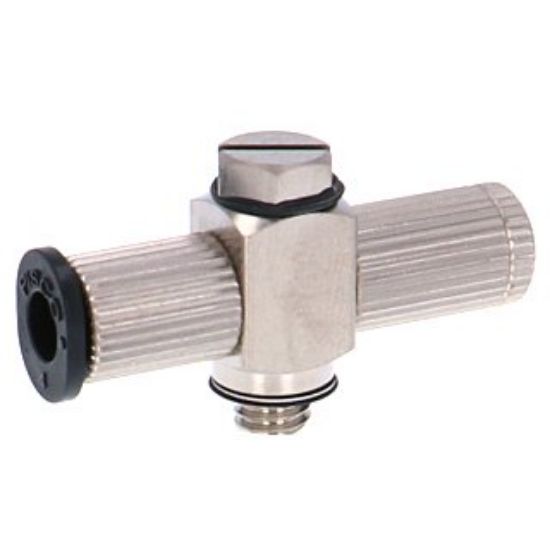

Pisco VCH04-M54 Vacuum Generator VC

Pisco VCH04-M54 Vacuum Generator VC

Size
vacuum port screw size (V): M5×0.8
air supply port tube outer diameter (P): 4mm

Vacuum characteristics
high vacuum degree
nozzle diameter: 0.4mm
Reach vacuum degree: -90kPa
Suction flow rate: 4L / min (ANR)
Consumption flow rate: 8 L / min (ANR)

Features
● Compressed air is changed to vacuum, and it can be used for conveying workpieces (things) by changing compressed air to vacuum.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

13.5g
