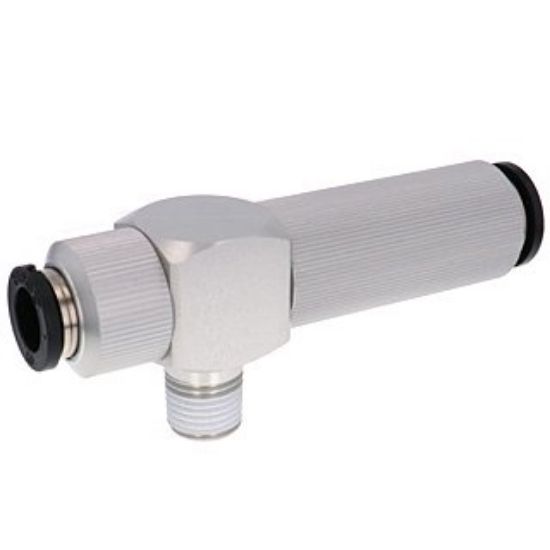

Pisco VCE20-0210CJ Vacuum Generator VC

Pisco VCE20-0210CJ Vacuum Generator VC
Manufacturer: Pisco
SKU: PS-VCE20-0210CJ
Manufacturer part number: VCE20-0210CJ

Pisco VCE20-0210CJ Vacuum Generator VC

Size
vacuum port screw size (V): R1/4
air supply port tube outer diameter (P): 10mm
exhaust port tube outer diameter (EX): 12mm

Vacuum characteristics
Low supply pressure high vacuum type
Nozzle diameter: 2mm
Arrival vacuum degree: -92kPa
Suction flow rate: 84L/min (ANR)
Consumption flow rate: 150L/min(ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
●Open ring: POM
●Seal rubber: NBR

Mass

105.5g
