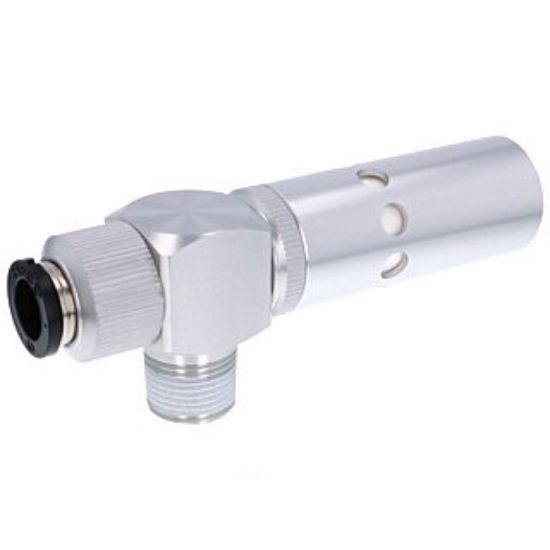

Pisco VCE15-0310C Vacuum Generator VC

Pisco VCE15-0310C Vacuum Generator VC

Size
vacuum port screw size (V): R3/8
air supply port tube outer diameter (P): 10mm

Vacuum characteristics
low supply pressure high vacuum degree
nozzle diameter: 1.5mm
Reach vacuum level: -92kPa
Suction flow rate: 42L/ min (ANR)
Consumption flow rate: 70L / min (ANR)

Features
● Change compressed air to vacuum, Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

89.5g
