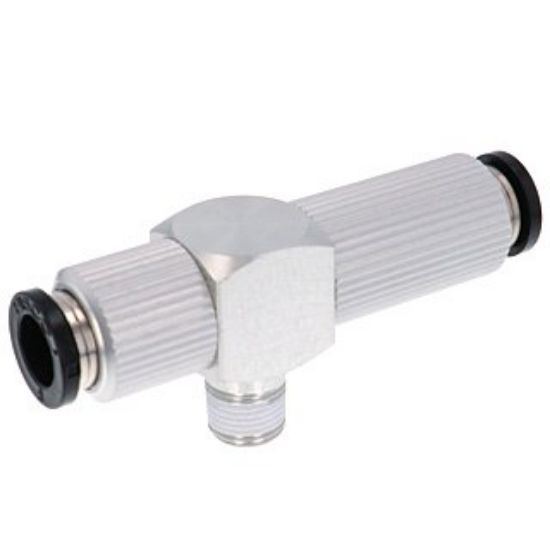

Pisco VCE12-018CJ Vacuum Generator VC

Pisco VCE12-018CJ Vacuum Generator VC
Manufacturer: Pisco
SKU: PS-VCE12-018CJ
Manufacturer part number: VCE12-018CJ

Pisco VCE12-018CJ Vacuum Generator VC

Size
vacuum port screw size (V): R1/8
air supply port tube outer diameter (P): 8mm
exhaust port tube outer diameter (EX): 8mm

Vacuum characteristics
Low supply pressure high vacuum type
Nozzle diameter: 1.2mm
Arrival vacuum degree: -92kPa
Suction flow rate: 27L/min(ANR)
Consumption flow rate: 47L/min(ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

36.5g
