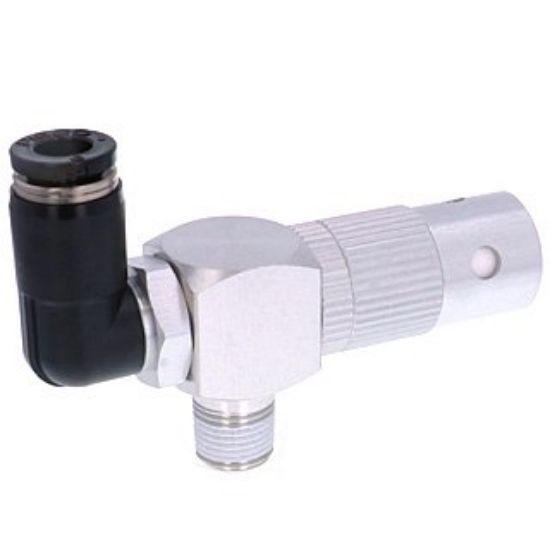

Pisco VCE12-016L Vacuum Generator VC

Pisco VCE12-016L Vacuum Generator VC

Size
vacuum port screw size (V): R1/8
air supply port tube outer diameter (P): 6mm

Vacuum characteristics
low supply pressure high vacuum degree
nozzle diameter: 1.2mm
Reach vacuum level: -92kPa
Suction flow rate: 27L/min(ANR)
Consumption flow rate: 47L/min(ANR)

Features
●Change compressed air to vacuum, Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Resin body: PBT
●Open ring: POM
●Seal rubber: NBR

Mass

31.5g
