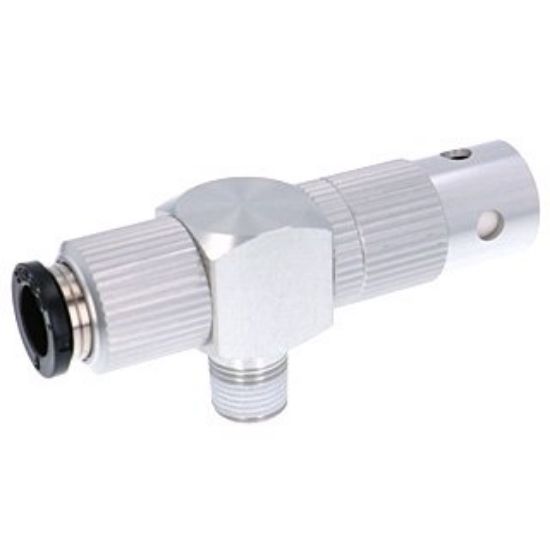

Pisco VCE10-018C Vacuum Generator VC

Pisco VCE10-018C Vacuum Generator VC
Manufacturer: Pisco
SKU: PS-VCE10-018C
Manufacturer part number: VCE10-018C

Pisco VCE10-018C Vacuum Generator VC

Size
vacuum port screw size (V): R1/8
air supply port tube outer diameter (P): 8mm

Vacuum characteristics
low supply pressure high vacuum degree
nozzle diameter: 1mm
Reach vacuum degree: -92kPa
Suction flow rate: 21L / min (ANR)
Consumption flow rate: 34 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

31.5g
