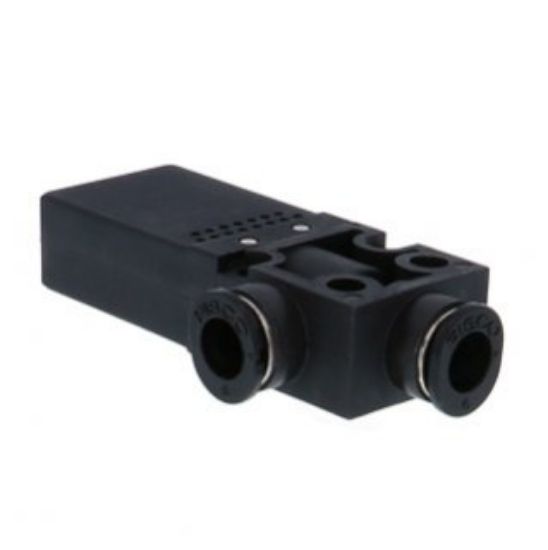

Pisco VBL10-66P Vacuum Generator VB

Pisco VBL10-66P Vacuum Generator VB

Size
Vacuum Port Tube Outer Diameter (V): 6mm
Air Supply Port Tube Outer Diameter (P): 6mm

Vacuum Characteristics
Large Flow Type
Nozzle Diameter: 1mm
Reaching Vacuum Degree:-66kPa
Suction Flow Rate: 42L/ min(ANR)
Consumption flow rate: 46L/min(ANR)

Features
●Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)


Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

17.5g
