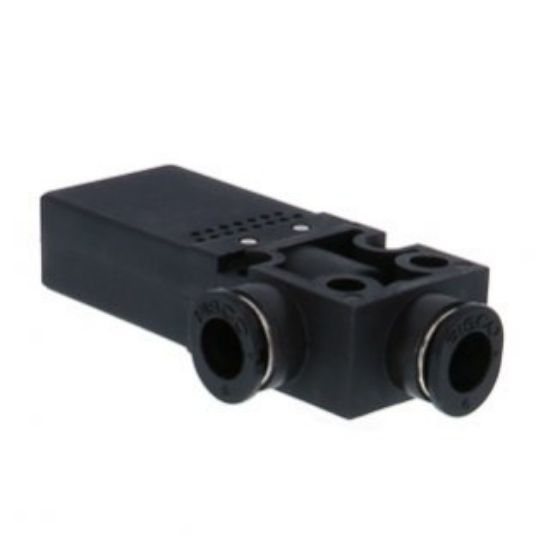

Pisco VBL07-66P Vacuum Generator VB

Pisco VBL07-66P Vacuum Generator VB

Size
Vacuum port tube outer diameter (V): 6mm
Air supply port tube outer diameter (P): 6mm

Vacuum characteristics
Large flow type
Nozzle diameter: 0.7mm
Reach vacuum degree: -66kPa
Suction flow rate: 26L/ min(ANR)
Consumption flow rate: 23L/min(ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)


Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

18.5g
