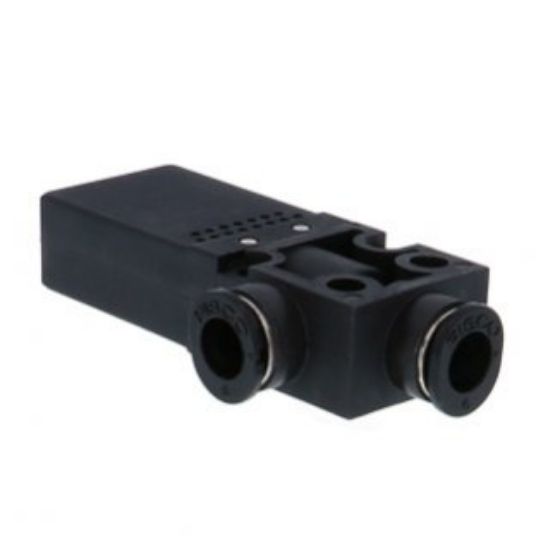

Pisco VBE12-66P Vacuum Generator VB

Pisco VBE12-66P Vacuum Generator VB

Size
Vacuum Port Tube Outer Diameter (V): 6mm
Air Supply Port Tube Outer Diameter (P): 6mm

Vacuum Characteristics
Low Supply Pressure High Vacuum Degree
Nozzle Diameter: 1.2mm
To Reach Vacuum Degree: -92kPa
Suction flow rate: 27 L / min (ANR)
Consumption flow rate: 47 L / min (ANR)

Features
● Compressed air can be changed into a vacuum and used for conveying workpieces (things) by changing compressed air to vacuum and combining it with a vacuum pad.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

18g
