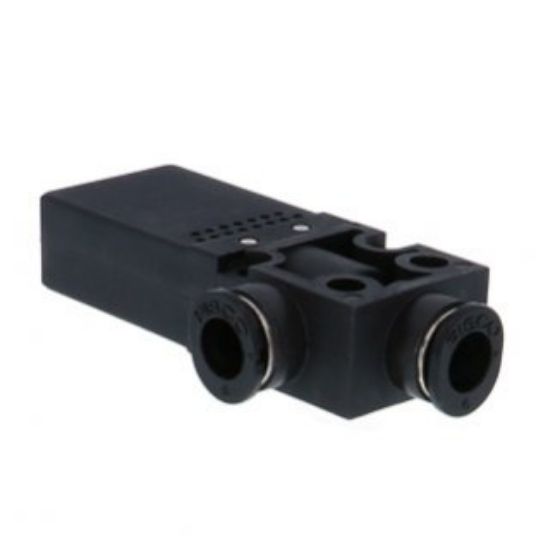

Pisco VBE10-66P Vacuum Generator VB

Pisco VBE10-66P Vacuum Generator VB

Size
Vacuum Port Tube Outer Diameter (V): 6mm
Air Supply Port Tube Outer Diameter (P): 6mm

Vacuum Characteristics
Low Supply Pressure High Vacuum Degree
Nozzle Diameter: 1mm
To Reach Vacuum Degree: -92kPa
Suction flow rate: 21L/min(ANR)
Consumption flow rate: 34L/min (ANR)

Features
●Compressed air can be changed into a vacuum and combined with a vacuum pad to convey workpieces (things).

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

18.5g
