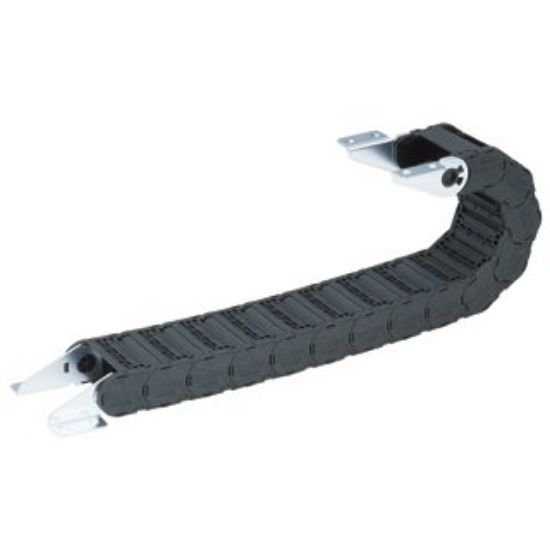

Pisco SP2035-R45 Cable Chains

Pisco SP2035-R45 Cable Chains

Size
Appearance dimensions (height × width): 26×47 mm
Storage part dimensions (height × width): 20×35 mm
Maximum cable hose outer diameter: 16 mm
Pitch: 32 mm
Number of links (/m): 32

Minimum bending radius
45mm

Flap opening and closing method
Left and right opening and closing

Features
● Compared to conventional products, wear of stored items such as electric wires and air hoses is reduced. By adopting special resin, wear of stored items is reduced to 1/4 to 1/5 of conventional products.

Specifications
● Operating temperature range: -10 to 80 °C
● Operating environment conditions: Please avoid hot water in the atmosphere of acid and alkali.
● Maximum free span: 1.25m
●Maximum movement stroke: 2.4m
●Maximum cable hose weight: 2.3kg/m
●Maximum travel speed: 3m/s

Mass
0.5kg/m

Material
●PA6 GF30%
