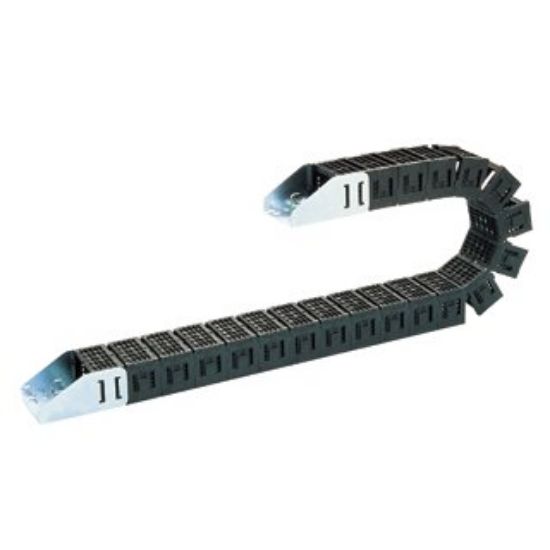

Pisco SC2560-R60 Cable Chains

Pisco SC2560-R60 Cable Chains

Size
Appearance dimensions (height × width): 40×70mm
Storage dimensions (height × width): 25×60 mm
Maximum cable / Hose outer diameter: 20 mm
Pitch: 30 mm
Number of links (/m): 33

Minimum bending radius
60mm

Flap opening and closing method
left and right opening and closing (optional selection type)

Features
● Connection structure without sliding part, succeeded in suppressing dust generation as much as possible. The bending part has a hinge structure and links can be increased or decreased.
- The noise generated while the links are running is reduced by the use of soft materials with low impact sound. By making it a framed structure, the inner surface of the main body that comes in contact with the internal storage cable while maintaining rigidity is soft material, significantly reducing wear to the cable.
- Cleanliness level is class 1000 level.
-The flap uses the same material as the SP series to improve rigidity and reduce cable wear. Flaps can be opened and closed in any direction on the left and right, as well as detachable. Main body installation direction, position, etc.

Specifications
● Operating temperature range: -8 to 80 °C
● Operating environment conditions: In the atmosphere of acid and alkali, please avoid hot water.
● Maximum free span: 1.5m
●Maximum movement stroke: 2.9m
●Maximum cable hose weight: 3kg/m
●Maximum travel speed: 4m/s

Mass
0.94kg/m

Material
●TPEE, PA6 GF30%
