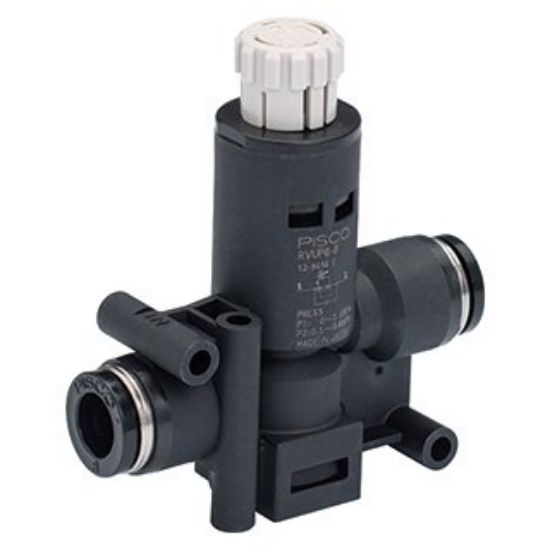

Pisco RVUP1/4-5/32 Regulator w/ Push Lock

Pisco RVUP1/4-5/32 Regulator w/ Push Lock

Size
Tube outer diameter (IN) (φD1): 1/4
tube outer diameter (OUT) (φD2): 5/32

Features
● Fixed by push lock type tsuma, pressure control work is easy and reliable.
● Prevents loosening of the lock nut due to the shaking of the machine.
- Due to the new structure, the flow rate increased by about 1.3 times compared to the current product. In addition, the pressure fluctuation range is reduced.
- With relief mechanism: convenient for adjusting equipment.
- With backflow mechanism: Installed between the solenoid valve and the actuator and can be used as a checkable regulator.
- Type with pressure gauge is also a lineup.

Specifications
●Fluid used: Air
●Operating pressure range: 0 to 145 psi
●Set pressure range: 14.5 to 116 psi
- Operating temperature range: 0 to 60 °C (non-freezing)

Material
● Resin body: PBT
with glass ● Metal body: brass + electroless nickel plating
● Opening ring: POM
- Seal rubber: NBR, HNBR

Mass

20g
