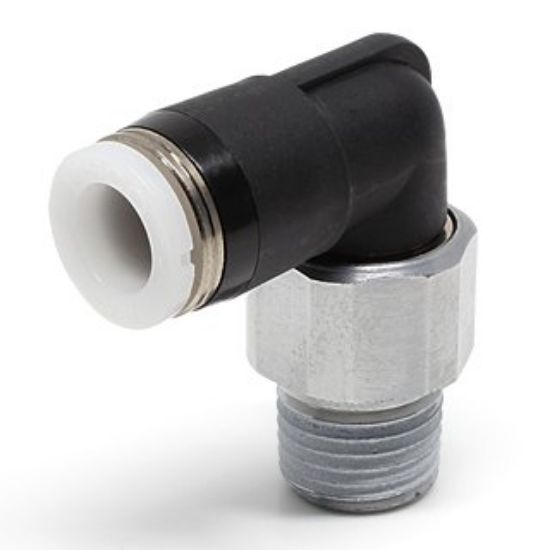

Pisco RL5/16-02 Rotary Joint

Pisco RL5/16-02 Rotary Joint

Size
Tube outer diameter (φD): 5/16
Screw size (R): R1/4

Features
● One-touch fittings that can be piped to the swinging part and rotating part of the equipment.
- Since bearings are used for the rotating part, it can be used for the swing part and the rotating part.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 400min ^-1
● Rotation torque: 1.5N / cm

Material
● Resin body: PBT
● Metal body: brass + chrome plating
● Open ring: POM
- Seal rubber: NBR, FKM

Mass

33g
