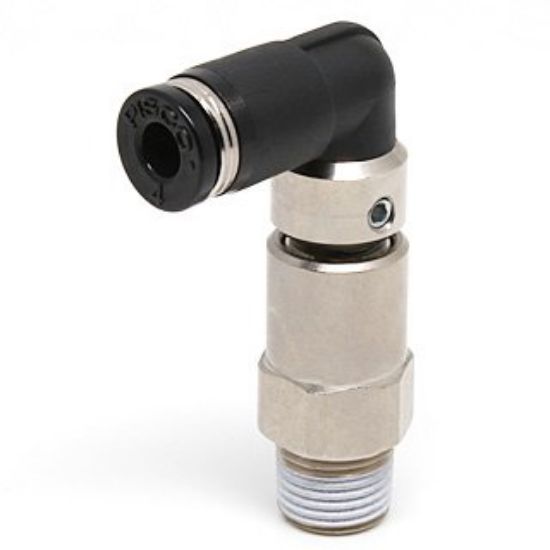

Pisco RHL4-01 High Rotary Joint

Pisco RHL4-01 High Rotary Joint

Size
Tube outer diameter (φD): 4mm
screw size (R): R1/8

Features
● One-touch fittings for fast-moving and high-rotation parts.
- Since we use two bearings, it can be used for fast moving parts and high rotation parts that can not be used with rotary joints.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (non-freezing)
●Allowable rotation speed: 1500min ^-1
●Rotation torque: 1.5N/ cm

Material
●Resin body: PBT
●Metal body: Brass + electroless nickel plating
●Open ring: POM
- Seal rubber: NBR, FKM

Mass

26g
