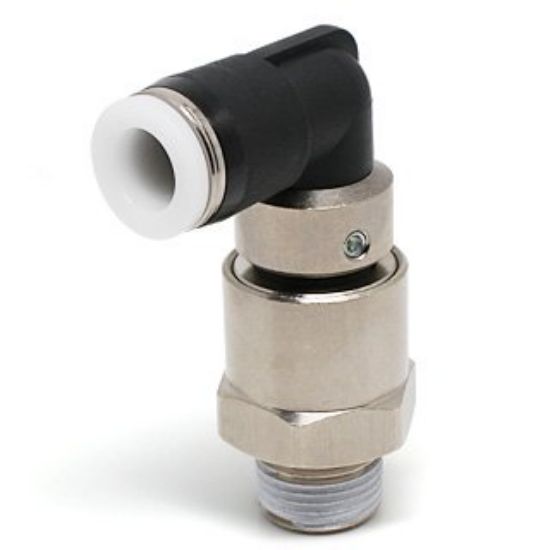

Pisco RHL3/8-03 High Rotary Joint

Pisco RHL3/8-03 High Rotary Joint

Size
Tube outer diameter (φD): 3/8
screw size (R): R3/8

Features
● One-touch fitting corresponding to fast-moving swinging and high rotation parts.
- Since we use two bearings, it can be used for fast moving parts and high rotation parts that can not be used with rotary joints.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 900min ^-1
●Rotation torque: 2.5N/ cm

Material
●Resin body: PBT
●Metal body: Brass + electroless nickel plating
●Open ring: POM
- Seal rubber: NBR, FKM

Mass

110g
