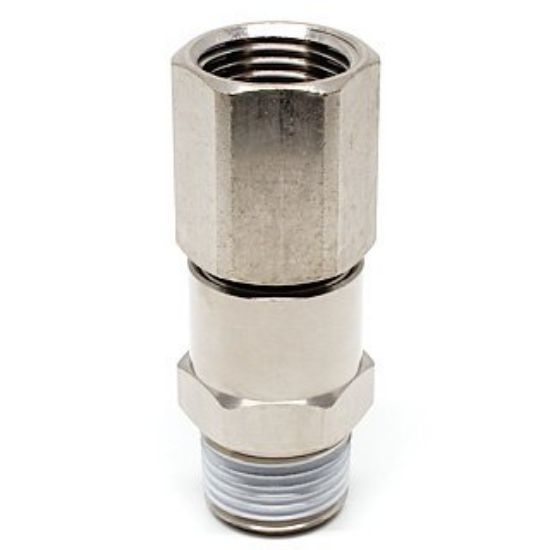

Pisco RHF04-04 High Rotary Joint

Pisco RHF04-04 High Rotary Joint

Size
Screw size (R): R1/2
Screw size (Rc): Rc1/2

Features
● One-touch fittings for fast-moving and high-rotation parts.
- Since we use two bearings, it can be used for fast moving parts and high rotation parts that can not be used with rotary joints.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 900min-1
- Rotation torque: 2.5N / cm

Material
● Metal body: brass + electroless nickel plating
● Seal rubber: NBR, FKM

Mass

157g
