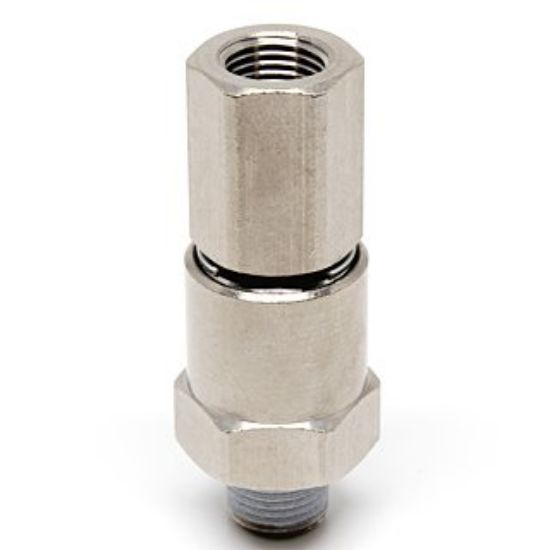

Pisco RHF01-01 High Rotary Joint

Pisco RHF01-01 High Rotary Joint

Size
Screw size (R): R1/8
Screw size (Rc): Rc1/8

Features
● One-touch fittings for fast-moving and high-rotation parts.
- Since we use two bearings, it can be used for fast moving parts and high rotation parts that can not be used with rotary joints.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (non-freezing)
●Allowable rotation speed: 1200min^{- 1}
● Rotation torque: 1.5N ・ cm

Material
● Metal body: brass + electroless nickel plating
● Seal rubber: NBR, FKM

Mass

50g
