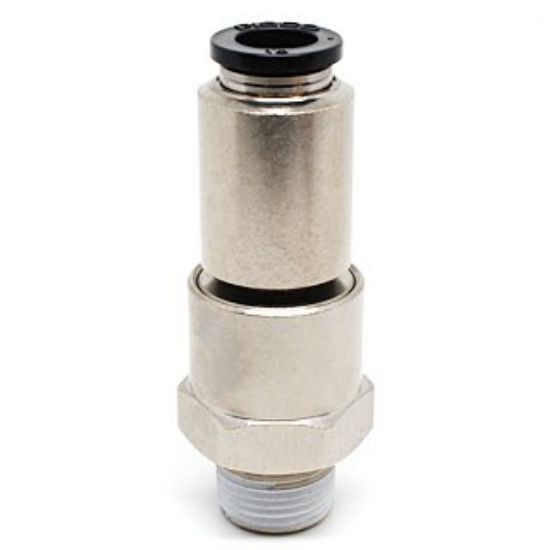

Pisco RHC10-03 High Rotary Joint

Pisco RHC10-03 High Rotary Joint

Size
Tube outer diameter (φD): 10mm
screw size (R): R3/8

Features
● One-touch fitting corresponding to fast moving and high rotation parts.
- Since we use two bearings, it can be used for fast moving parts and high rotation parts that can not be used with rotary joints.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 900min ^-1
●Rotation torque: 2.5N/cm

Material
●Metal body: Brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR, FKM

Mass

121g
