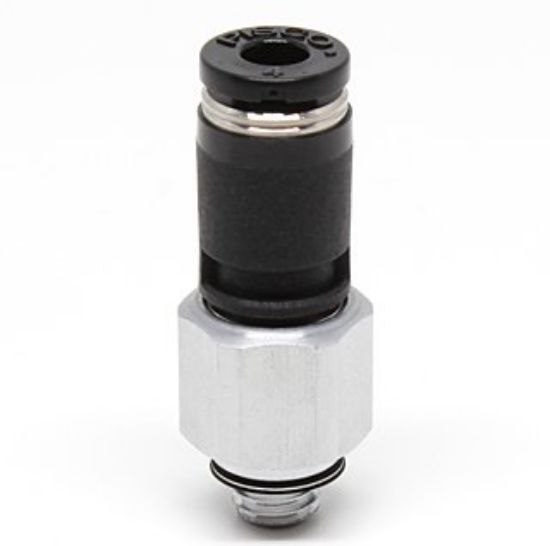

Pisco RC4-M6 Rotary Joint

Pisco RC4-M6 Rotary Joint

Size
Tube outer diameter (φD): 4mm
screw size (M): M6×1

Features
● One-touch fittings that can be piped to the swinging part and rotating part of the equipment.
- Since bearings are used for the rotating part, it can be used for the swing part and the rotating part.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 500min ^-1
●Rotation torque: 0.6N/cm

Material
●Resin body: PBT
●Metal body: Brass + chrome plating
●Open ring: POM
- Seal rubber: NBR, FKM

Mass

13g
